Entry Control Model Settings

You can select a traffic entry control model to apply to the segment.

Entry Control Model Settings

Overview​

The Entry Control Model Settings allows you to select a traffic entry control model to apply to the segment. Each model provides different characteristics and advantages, enabling you to choose an entry control method that suits various use cases.

Important: Segment Control Limitation

Fixed Entry Mode cannot be selected in Segment Control.

Entry Control Model Types​

NetFUNNEL provides two entry control models:

Dynamic Entry Mode​

Recommended for customers who want to manage queues flexibly according to real-time user traffic.

Key Features:

  • Entry rate and wait times are dynamically adjusted based on real-time traffic changes
  • Prevents resource overuse and enables stable service operation

Notice:

  • Queue information is updated dynamically based on real-time request conditions
  • Wait times may vary slightly depending on real-time traffic conditions

Fixed Entry Mode​

Recommended for customers who want to provide users with accurate queue positions and wait times, ensuring a stable and trustworthy experience.

Key Features:

  • Because entry is processed at fixed intervals, the queue flow remains stable regardless of client request volume
  • Providing users with accurate queue positions and estimated wait times helps build trust in the service

Notice:

  • All users in the queue are admitted at fixed intervals, so entry speed remains consistent even when server resources are available

Configuration Process​

The Entry Control Model Settings is configured through the following steps:

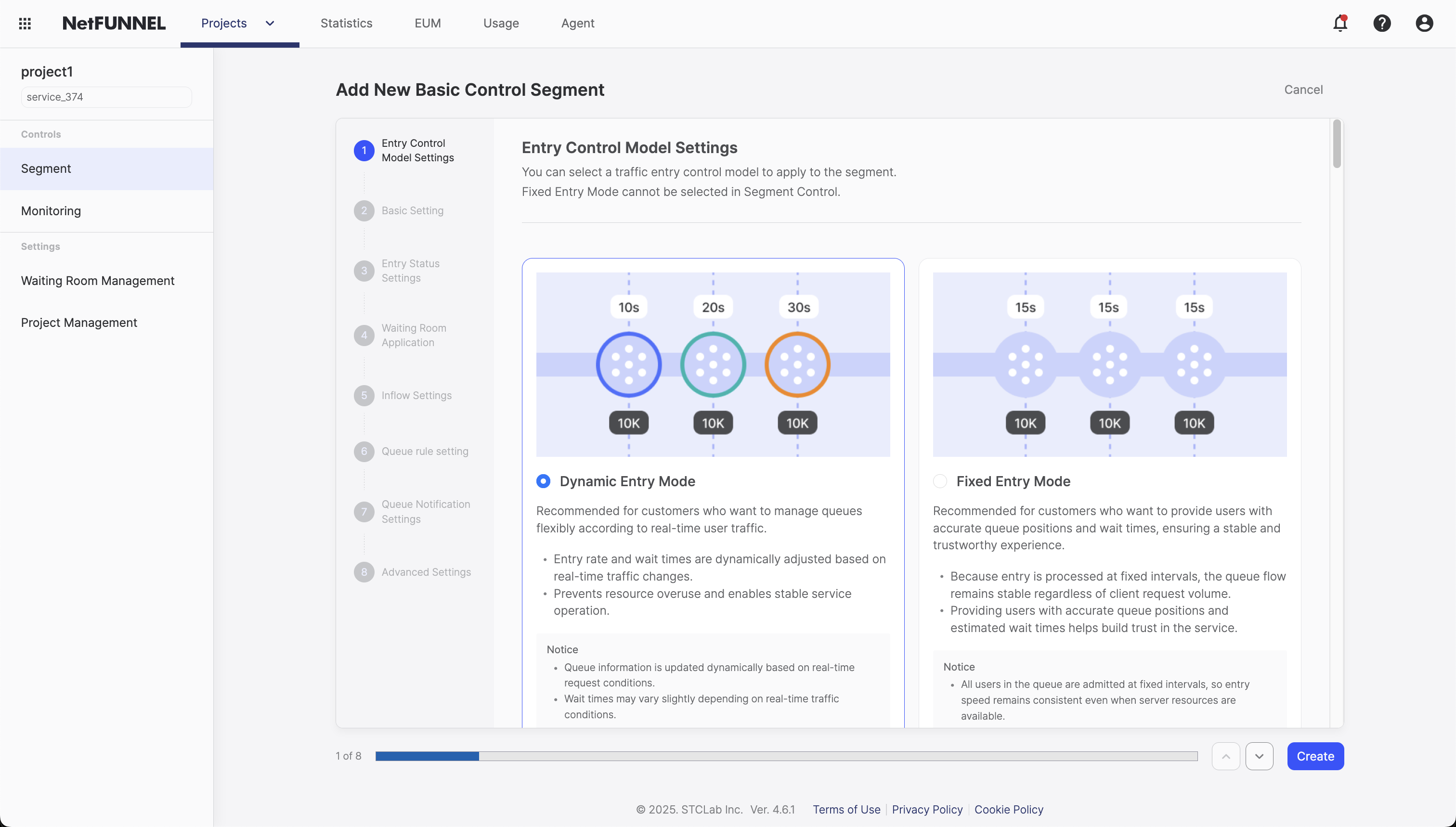

Step 1: Access Entry Control Model Settings​

  1. Navigate to Basic Control Segment in NetFUNNEL
  2. Click "Entry Control Model Settings"
  3. Review the configuration screen

Step 2: Select Entry Control Model​

  1. Select "Dynamic Entry Mode": When you want to manage queues flexibly based on real-time traffic
  2. Select "Fixed Entry Mode": When you want to provide accurate queue positions and estimated wait times
    • Fixed Entry Mode cannot be selected in Segment Control segments

Step 3: Save Settings​

  1. Save settings: Save the changes
