Basic Control Integration

Complete guide for implementing Basic Control with NetFUNNEL iOS Agent using code-based integration.

Integration Methods

This is one of two integration methods available. See the Integration Methods Overview to compare with Section Control and choose the best approach for your use case.

How It Works​

User Experience:

  1. User clicks button or triggers action

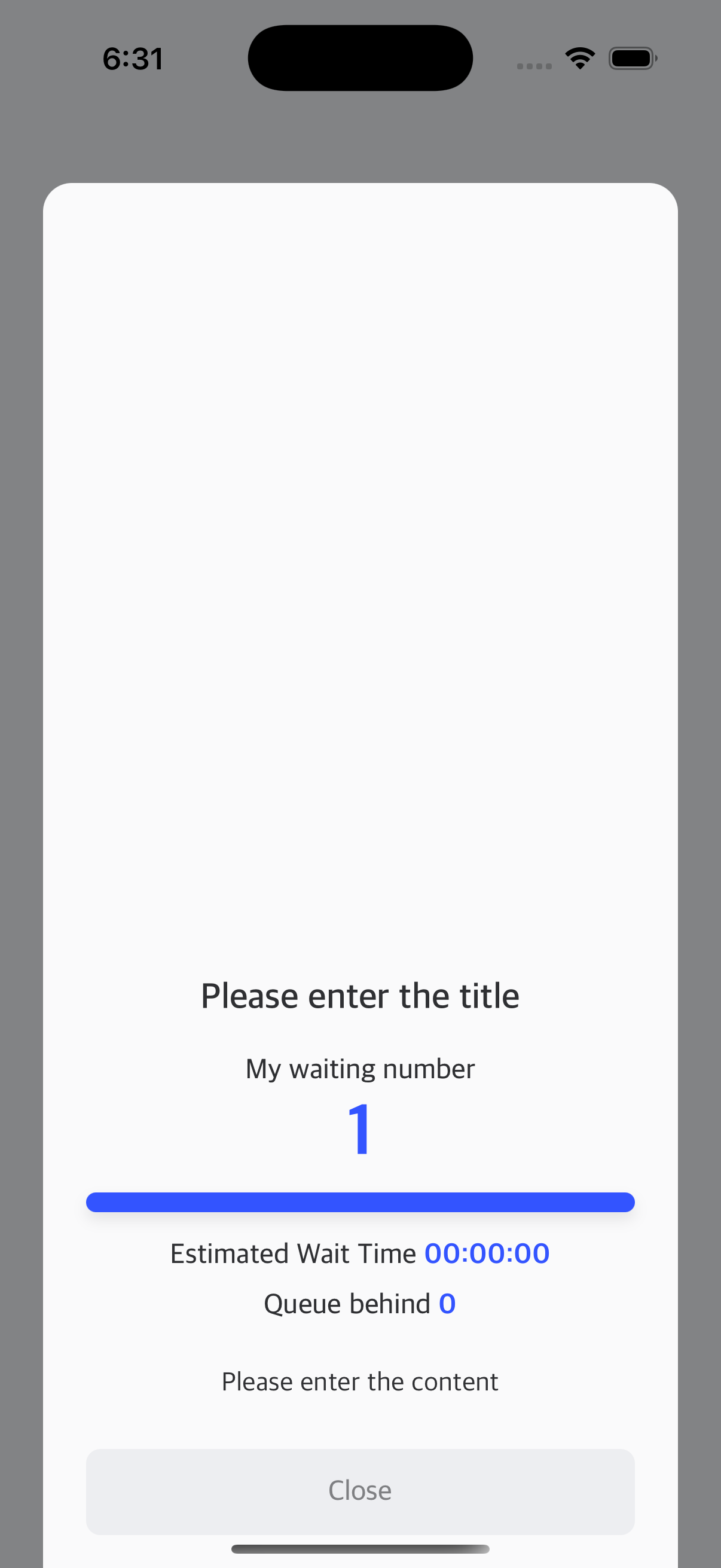

  2. Waiting room appears on current screen

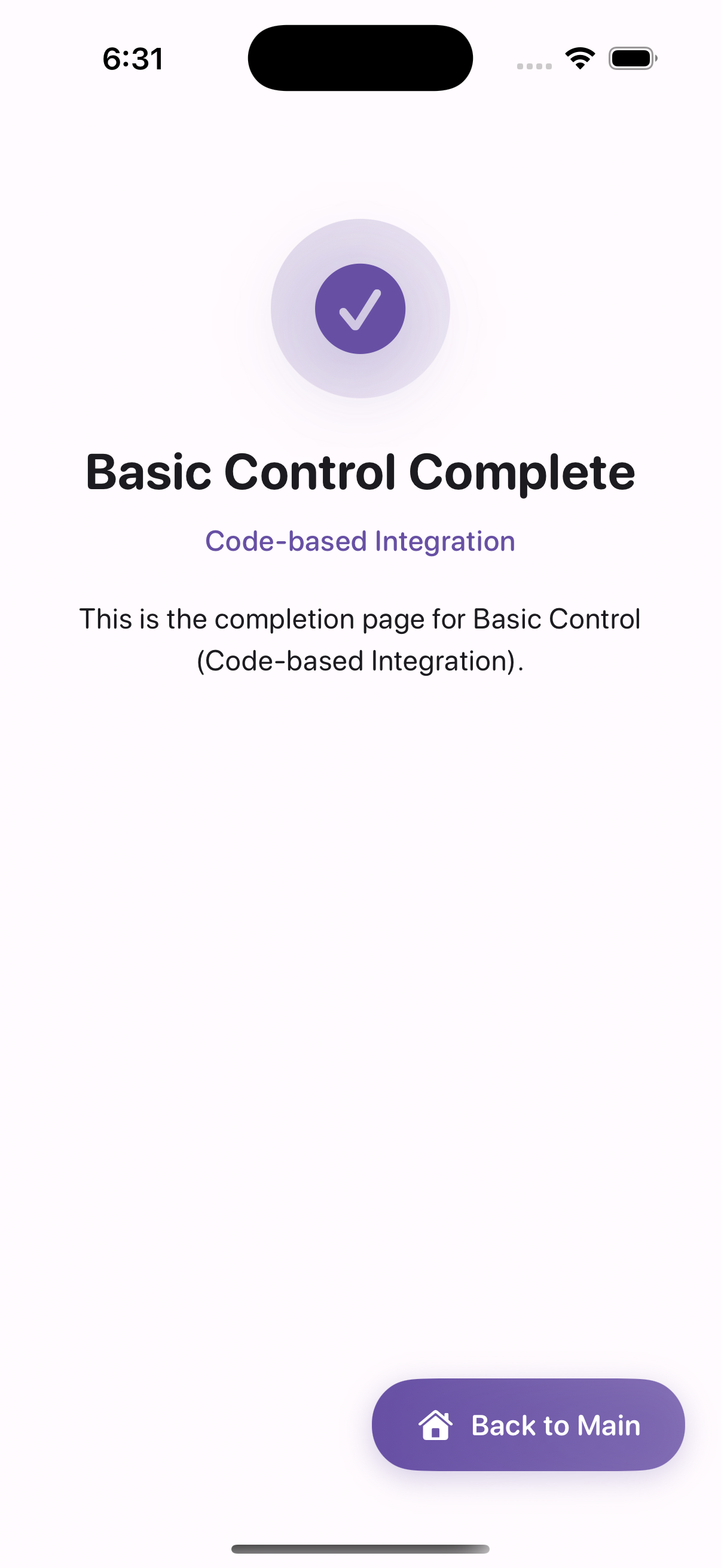

  3. When entry allowed, waiting room closes and service continues

Best For:

  • Button click protection (login, checkout, order)
  • API call throttling
  • Precise control over specific actions

Key Difference from Section Control:

  • Basic Control: Controls entry speed (key returned quickly)
  • Section Control: Maintains fixed capacity (key held until section exit)

Prerequisites​

Sample Application Examples

This guide uses a sample application to demonstrate Basic Control integration patterns. Your actual application code will differ from the examples shown. Focus on understanding the integration concepts and adapt the patterns to your specific codebase, function names, and business logic.

💡 Practice Template: Check out our Sample Projects for an iOS Application (Single ViewController) template ready for NetFUNNEL SDK integration practice.

Step 1: Create a Segment​

Both Control Types Supported

Code-based Integration supports both Basic Control and Section Control. This guide uses Basic Control.

1.1 Create New Segment​

  1. Go to NetFUNNEL console → Projects → Segment
  2. Click the + button to create a new segment

Create segment button

1.2 Select Control Type​

Choose Basic Control and click Next

Select Basic Control

1.3 Configure Segment​

Segment Name: Enter a descriptive name (e.g., "Login Button", "Checkout Process", "API Call Protection")

Enter segment name

Entry Status:

  • ✅ Segment Activation enabled
  • Entry Status: Waiting (sends users to waiting room)

Entry status settings

Waiting Room Application:

  • Use default settings for testing
  • Leave Live Message blank

Waiting room settings

Limited Inflow:

  • Set to 0 for testing (no one admitted, waiting room always appears)

Limited inflow setting

1.4 Create Segment​

Click Create to finalize the segment

Segment created

Step 2: Identify Key Issuance Integration Point (nfStart)​

Sample Application

The following examples use a sample application for demonstration purposes. Your actual application code will naturally differ from what is shown here. Adapt the integration patterns to match your specific code structure, button IDs, function names, and business logic.

💡 Need a practice project? Check out our Sample Projects for an iOS Application (Single ViewController) template ready for NetFUNNEL SDK integration practice.

Understanding Our Sample Application:

Let's examine our sample application to understand where NetFUNNEL protection should be applied:

2.1 Identify the Target Button in Layout​

// MainView.swift
struct MainView: View {
    @StateObject private var navigationManager = NavigationManager.shared

    var body: some View {
        ScrollView {
            VStack(spacing: 0) {
                // Hero Section (omitted for brevity)
                // ... existing UI structure ...

                // Cards Section
                VStack(spacing: 20) {
                    // 🎯 TARGET BUTTON: Basic Control Function Card
                    // This is the button we want to protect with NetFUNNEL
                    Button(action: {
                        navigationManager.navigateWithDelay(to: .basicControl)
                    }) {
                        ModernCard(
                            icon: "arrow.right.circle.fill",
                            title: "Basic Control",
                            subtitle: "Code-based Integration",
                            description: "Simple linear navigation flow",
                            accentColor: MaterialColors.lightPrimary
                        )
                    }
                    .buttonStyle(ModernCardButtonStyle())

                    // Other button - not our target
                    Button(action: {
                        navigationManager.navigateWithDelay(to: .sectionControlSection1)
                    }) {
                        ModernCard(
                            icon: "list.bullet.circle.fill",
                            title: "Section Control",
                            subtitle: "Code-based Integration",
                            description: "Multi-step navigation flow",
                            accentColor: MaterialColors.lightSecondary
                        )
                    }
                    .buttonStyle(ModernCardButtonStyle())
                }
                .padding(.horizontal, 20)

                Spacer(minLength: 40)
            }
        }
        // Additional UI modifiers omitted for brevity
        // ... background, frame, navigationBarHidden, etc. ...
    }
}

Our Assumptions for This Sample:

  • The "Basic Control" button represents a resource-intensive operation
  • This could be: user login, payment processing, file upload, or data export
  • When many users click this button simultaneously, it could overwhelm the server
  • The other button is less critical and doesn't need protection

2.2 Find the Click Listener for This Button​

What is a Click Listener?

A click listener (also called an action handler or event handler) is the code that executes when a user interacts with a UI element. In SwiftUI, this is typically defined using the Button(action:) closure syntax.

Understanding SwiftUI Button Structure:

Button(action: {
    // 🎯 THIS IS THE CLICK LISTENER
    // Code here runs when user taps the button
}) {
    // THIS IS THE BUTTON'S VISUAL APPEARANCE
    // Defines what the button looks like
}

In Our Sample Application:

// MainView.swift
struct MainView: View {
    @StateObject private var navigationManager = NavigationManager.shared

    var body: some View {
        ScrollView {
            VStack(spacing: 0) {
                // Hero Section (omitted for brevity)
                // ... existing UI structure ...

                // Cards Section
                VStack(spacing: 20) {
                    // 🎯 TARGET BUTTON: Basic Control Function Card
                    Button(action: {
                        // 🎯 CLICK LISTENER: This is where the button action is defined
                        // This is the code that runs when user clicks the button
                        // Currently: navigationManager.navigateWithDelay(to: .basicControl)
                        // We will wrap this with NetFUNNEL protection
                        navigationManager.navigateWithDelay(to: .basicControl)
                    }) {
                        // 🎨 BUTTON APPEARANCE: This defines what the button looks like
                        ModernCard(
                            icon: "arrow.right.circle.fill",
                            title: "Basic Control",
                            subtitle: "Code-based Integration",
                            description: "Simple linear navigation flow",
                            accentColor: MaterialColors.lightPrimary
                        )
                    }
                    .buttonStyle(ModernCardButtonStyle())

                    // Other button - not our target (no NetFUNNEL protection needed)
                    Button(action: {
                        // This button doesn't need NetFUNNEL protection
                        navigationManager.navigateWithDelay(to: .sectionControlSection1)
                    }) {
                        ModernCard(
                            icon: "list.bullet.circle.fill",
                            title: "Section Control",
                            subtitle: "Code-based Integration",
                            description: "Multi-step navigation flow",
                            accentColor: MaterialColors.lightSecondary
                        )
                    }
                    .buttonStyle(ModernCardButtonStyle())
                }
                .padding(.horizontal, 20)

                Spacer(minLength: 40)
            }
        }
        // Additional UI modifiers omitted for brevity
        // ... background, frame, navigationBarHidden, etc. ...
    }
}

Key Points:

  • Click Listener Location: Inside the Button(action:) closure
  • Current Action: navigationManager.navigateWithDelay(to: .basicControl) executes immediately
  • Integration Target: This is where we'll add NetFUNNEL protection

2.3 Examine What Happens Inside the Click Listener​

What the function does:

// NavigationManager.swift
func navigateWithDelay(to destination: NavigationDestination, customDelay: TimeInterval? = nil) {
    let delay = customDelay ?? appPreferences.getNavigationDelay()

    loadingDialogManager.showLoading()  // ← Shows loading indicator

    DispatchQueue.main.asyncAfter(deadline: .now() + delay) {
        self.loadingDialogManager.hideLoading()  // ← Hides loading indicator
        self.navigate(to destination)  // ← Navigates to target screen
    }
}

Summary: Shows loading → Waits → Hides loading → Navigates. This simulates server processing and needs NetFUNNEL protection.

2.4 Identify the Integration Point​

  1. Target Button: "Basic Control" button in MainView (the resource-intensive one)
  2. Click Listener: Button(action:) closure sets up the click handler
  3. Integration Location: Right before navigationManager.navigateWithDelay() is called
  4. Why Here: This is the exact moment before server processing begins
  5. Protection Strategy: Add NetFUNNEL queue before the server call

Complete Flow Analysis:

  1. View Creation: MainView body creates the button
  2. Button Setup: Button(action:) sets up click handler for the button
  3. User Action: User clicks "Basic Control" button
  4. Current Behavior: navigationManager.navigateWithDelay() executes immediately
  5. Server Load: This triggers the resource-intensive operation

The Logic:

  • Without NetFUNNEL: Button click → Immediate server request → Potential overload
  • With NetFUNNEL: Button click → Queue check → Controlled server request → Success

Step 3: Implement Key Issuance Function (nfStart)​

Adapt to Your Code

The example below shows how to integrate NetFUNNEL into the sample application's button action method. Adapt this pattern to your actual code structure - you may have different function names, event handlers, or business logic that needs protection.

3.1 Get Your Keys​

First, find your Project Key and Segment Key in the console:

  1. Go to NetFUNNEL console → Projects → Segment
  2. Click on your segment
  3. Copy the Project Key and Segment Key

Project and segment keys

3.2 Understand the nfStart Function​

The nfStart function has this basic structure:

Netfunnel.shared.nfStart(
    projectKey: "your_project_key",    // From console
    segmentKey: "your_segment_key"    // From console
)
API Reference

For complete details about nfStart parameters, delegate handling, and response formats, see the API Reference.

3.3 Start with Your Current Code​

Current Implementation:

// MainView.swift
Button(action: {
    navigationManager.navigateWithDelay(to: .basicControl)
}) {
    ModernCard(
        icon: "arrow.right.circle.fill",
        title: "Basic Control",
        subtitle: "Code-based Integration",
        description: "Simple linear navigation flow",
        accentColor: MaterialColors.lightPrimary
    )
}
.buttonStyle(ModernCardButtonStyle())

The Core Concept:

  • Business Logic: navigationManager.navigateWithDelay(to: .basicControl) represents a resource-intensive operation
  • Integration Point: We need to wrap this business logic with NetFUNNEL protection
  • Wrapping Strategy: Use nfStart() to control access before the business logic executes

Why Wrap Here:

  • This is the exact moment before server load begins
  • Wrapping here protects the entire downstream operation
  • The business logic remains unchanged - we just add a queue layer

3.4 Add Required Imports​

Before implementing NetFUNNEL, add the necessary imports to your SwiftUI View:

// MainView.swift
import Netfunnel_iOS

Key Imports:

  • Netfunnel_iOS - Main NetFUNNEL framework

3.5 Add Basic NetFUNNEL Protection (Success Only)​

NetfunnelHandler Already Created

You should already have NetfunnelHandler.swift from the Installation & Initialization step. If you haven't completed that step yet, please go back and complete it first.

Wrap the Business Logic:

// MainView.swift
import SwiftUI
import Netfunnel_iOS

struct MainView: View {
    @StateObject private var navigationManager = NavigationManager.shared

    var body: some View {
        ScrollView {
            VStack(spacing: 0) {
                // Hero Section omitted for brevity
                // ... existing UI structure ...

                // Cards Section
                VStack(spacing: 20) {
                    // Basic Control Function Card - Protected with NetFUNNEL
                    Button(action: {
                        startBasicControl() // Call NetFUNNEL-protected function
                    }) {
                        ModernCard(
                            icon: "arrow.right.circle.fill",
                            title: "Basic Control",
                            subtitle: "Code-based Integration",
                            description: "Simple linear navigation flow",
                            accentColor: MaterialColors.lightPrimary
                        )
                    }
                    .buttonStyle(ModernCardButtonStyle())

                    // Section Control Function Card
                    Button(action: {
                        navigationManager.navigateWithDelay(to: .sectionControlSection1)
                    }) {
                        ModernCard(
                            icon: "list.bullet.circle.fill",
                            title: "Section Control",
                            subtitle: "Code-based Integration",
                            description: "Multi-step navigation flow",
                            accentColor: MaterialColors.lightSecondary
                        )
                    }
                    .buttonStyle(ModernCardButtonStyle())
                }
                .padding(.horizontal, 20)

                Spacer(minLength: 40)
            }
        }
        // Additional UI modifiers omitted for brevity
        // ... background, frame, navigationBarHidden, etc. ...
        .onAppear {
            setupCallbacks()
        }
    }

    private func setupCallbacks() {
        // Set up callback closures for NetFUNNEL responses
        NetfunnelHandler.shared.onSuccess = { projectKey, segmentKey, statusCode, message in
            NSLog("onSuccess \(statusCode) \(message)")
            // Execute original business logic when NetFUNNEL allows entry
            navigationManager.navigateWithDelay(to: .basicControl)
        }

        NetfunnelHandler.shared.onError = { projectKey, segmentKey, statusCode, message in
            NSLog("onError \(statusCode) \(message)")
        }

        NetfunnelHandler.shared.onNetworkError = { projectKey, segmentKey, statusCode, message in
            NSLog("onNetworkError \(statusCode) \(message)")
        }

        NetfunnelHandler.shared.onBlock = { projectKey, segmentKey, statusCode, message in
            NSLog("onBlock \(statusCode) \(message)")
        }

        NetfunnelHandler.shared.onClose = { projectKey, segmentKey, statusCode, message in
            NSLog("onClose \(statusCode) \(message)")
        }

        NetfunnelHandler.shared.onContinue = { projectKey, segmentKey, statusCode, message, aheadWait, behindWait, waitTime, progressRate in
            NSLog("onContinue \(statusCode) \(message)")
        }
    }

    private func startBasicControl() {
        // Start NetFUNNEL queue protection
        Netfunnel.shared.nfStart(
            projectKey: "your_project_key",
            segmentKey: "your_segment_key"
        )
    }

    // Color calculation properties omitted for brevity
    // private var backgroundColor: Color { ... }
}

What Changed:

  • Wrapped: navigationManager.navigateWithDelay() is now inside the onSuccess callback
  • Conditional: Only the specific button gets NetFUNNEL protection
  • Success-Only: Business logic runs only when NetFUNNEL allows entry
  • Complete Interface: All required delegate methods are implemented with proper logging
iOS Delegate Requirements

In iOS, NetfunnelDelegate requires implementing ALL methods. You cannot implement only onSuccess - you must provide implementations for all delegate methods. This implementation provides complete delegate handling with proper logging for all response types.

Now let's test your implementation to make sure everything is working correctly.

Run your app and click the "Basic Control" button. You should see a waiting room WebView appear on your screen. To verify everything is working properly, check the Xcode console for NetFUNNEL logs.

If No Waiting Room Appears

If you don't see the waiting room, make sure you set Limited Inflow to 0 in the Configure Segment step. This setting controls whether users are sent to the waiting room or allowed to proceed directly.

Enable NetFUNNEL Logging for Better Debugging:

Enable debug logging by setting printLog = true in your AppDelegate initialization, then check the Xcode console. For detailed setup instructions, see the Test NetFUNNEL Initialization) section.

What to Look For:

When you click the Basic Control button with Limited Inflow = 0, you should see logs like this:

[NF4] [2025-09-18 15:17:48.452] Initialization successful. NetFUNNEL Version: 4.3.2-onprem
[NF4] [2025-09-18 15:17:52.331] Sending initialEntry request: https://nf4-onprem-demo-4525.stclab.com/ts.wseq?opcode=5101&sid=service_1&aid=test_liam_01
[NF4] [2025-09-18 15:17:52.475] Received initialEntry response: Response(timestamp: Optional(1758176272469), code: 201, key: Optional("000F49F7F52ACADEF43B48BA3B72504953385B97C9B710E930978A54657743A944B31A90F7E4D124D288493C55ED1695BCFD08B8F833299D4D743DBF3C84B6D4E168B227EF3E2A74958D7ED95766B706459E4B85A186035300FD8474FD450E3D342C312C302C302C302C302C30"), nwait: Optional(0), nnext: Optional(0), tps: Optional(0.0), ttl: Optional(1), ip: Optional("nf4-onprem-demo-4525.stclab.com"), port: Optional(443), preBeginTs: nil, preEndTs: nil, postBeginTs: nil, postEndTs: nil, sticky: Optional("nf1"), vwrHtml: Optional("https://nf4-onprem-demo-4525.stclab.com/content/netfunnel-statics/assets/vwr-page/page/1/1/1/index.html"), liveMessage: nil, chkEnterCnt: Optional(0), waitOrderYn: Optional(0), msg: nil, vwrType: Optional("wait"))
[NF4] [2025-09-18 15:17:53.154] Fetching HTML content from following URL. https://nf4-onprem-demo-4525.stclab.com/content/netfunnel-statics/assets/vwr-page/page/1/1/1/index.html
[NF4] [2025-09-18 15:17:53.481] Sending reentry request: https://nf4-onprem-demo-4525.stclab.com:443/ts.wseq?opcode=5002&key=000F49F7F52ACADEF43B48BA3B72504953385B97C9B710E930978A54657743A944B31A90F7E4D124D288493C55ED1695BCFD08B8F833299D4D743DBF3C84B6D4E168B227EF3E2A74958D7ED95766B706459E4B85A186035300FD8474FD450E3D342C312C302C302C302C302C30&sticky=nf1
[NF4] [2025-09-18 15:17:53.542] Received reentry response: Response(timestamp: Optional(1758176273542), code: 201, key: Optional("000F49F7F52ACADEF43B48BA3B725049E96705109E9BE7300670B2EB820666F55758079BA9E0833F05741BAB6B0407A3BCFD08B8F833299D4D743DBF3C84B6D4E168B227EF3E2A74958D7ED95766B706459E4B85A186035300FD8474FD450E3D332C312C302C302C302C302C30"), nwait: Optional(0), nnext: Optional(0), tps: Optional(0.0), ttl: Optional(1), ip: Optional("nf4-onprem-demo-4525.stclab.com"), port: Optional(443), preBeginTs: nil, preEndTs: nil, postBeginTs: nil, postEndTs: nil, sticky: Optional("nf1"), vwrHtml: Optional("https://nf4-onprem-demo-4525.stclab.com/content/netfunnel-statics/assets/vwr-page/page/1/1/1/index.html"), liveMessage: nil, chkEnterCnt: Optional(0), waitOrderYn: Optional(0), msg: nil, vwrType: Optional("wait"))

Key indicators that everything is working:

Log MessageWhat It MeansStatus
[NF4] Initialization successfulNetFUNNEL agent loaded correctly✅ Good
[NF4] Sending initialEntry requestnfStart() was called successfully, Request sent to NetFUNNEL server✅ Good
[NF4] Received initialEntry response with code: 201Server responded with WAIT status✅ Good
[NF4] Fetching HTML contentWaiting room WebView is loading, Waiting room HTML is being loaded✅ Good
[NF4] Sending reentry requestPeriodic re-entry requests (polling)✅ Good
[NF4] Received reentry response with code: 201Server responded with WAIT status✅ Good

If you encounter issues:

  • No logs appear: Check if printLog = true is set in initialization
  • No waiting room: Verify Limited Inflow is set to 0 in console
  • App crashes: Check if all required delegate methods are implemented properly
  • Network errors: Verify server URL and network connectivity

If you see the waiting room and logs, your basic implementation is working! You can now proceed to enhance the callback handling for better error management. To test entry, change Limited Inflow to 1 in the console.

3.6 Add Complete Callback Handling​

Now let's improve the callback handling for better error management and user experience:

In the previous step, we implemented all callback methods with basic logging. Now we'll enhance the error handling to ensure robust service availability and optimal user experience in production environments.

Why Complete Callback Handling is Essential:

  • User Experience: Different response types need appropriate user feedback
  • Service Reliability: Error states should not break the user's workflow
  • Debugging: Comprehensive logging helps identify issues quickly
  • Business Continuity: Service should continue even when NetFUNNEL encounters problems

Enhance your setupCallbacks with robust error handling:

// MainView.swift - Updated setupCallbacks with complete handling
private func setupCallbacks() {
    NetfunnelHandler.shared.onSuccess = { projectKey, segmentKey, statusCode, message in
        // User can proceed - execute original logic
        NSLog("onSuccess \(statusCode) \(message)")
        navigationManager.navigateWithDelay(to: .basicControl)
    }

    NetfunnelHandler.shared.onError = { projectKey, segmentKey, statusCode, message in
        // System error occurred - proceed with original logic for robust service availability
        NSLog("onError \(statusCode) \(message)")
        navigationManager.navigateWithDelay(to: .basicControl)
    }

    NetfunnelHandler.shared.onNetworkError = { projectKey, segmentKey, statusCode, message in
        // Network error occurred - log for debugging, but don't execute business logic
        NSLog("onNetworkError \(statusCode) \(message)")
        // Note: Business logic not executed here - see explanation below
    }

    NetfunnelHandler.shared.onBlock = { projectKey, segmentKey, statusCode, message in
        // User is blocked - show appropriate message
        NSLog("onBlock \(statusCode) \(message)")
    }

    NetfunnelHandler.shared.onClose = { projectKey, segmentKey, statusCode, message in
        // User closed waiting room - handle appropriately
        NSLog("onClose \(statusCode) \(message)")
        // Stay on main screen - user canceled
    }

    NetfunnelHandler.shared.onContinue = { projectKey, segmentKey, statusCode, message, aheadWait, behindWait, waitTime, progressRate in
        NSLog("onContinue \(statusCode) \(message)")
    }
}

Response Handling Strategy:

Response TypeActionBusiness Logic
SuccessExecute✅ Yes
ErrorExecute✅ Yes
NetworkErrorLog Only❌ No
BlockLog Only❌ No
CloseLog Only❌ No
ContinueLog Only❌ No

Why onError Executes Business Logic but onNetworkError Doesn't:

onError (Status Code 500) - Server Error:

  • Scenario: NetFUNNEL server encounters internal errors
  • Strategy: Execute business logic to maintain service availability
  • Rationale: Server errors are typically temporary and shouldn't block user access
  • Result: Robust service that continues even when NetFUNNEL has issues

onNetworkError (Status Code 1001, 1002) - Network Issues:

  • Scenario: Network connectivity problems (offline, timeout)
  • Strategy: Log only, don't execute business logic
  • Rationale: Use useNetworkRecoveryMode = true for automatic network recovery
  • Result: Users stay in waiting room during network issues and auto-resume when connectivity returns

Network Recovery Mode Configuration:

Enable network recovery in your AppDelegate for optimal network error handling:

// AppDelegate.swift
Netfunnel.initialize(
    clientId: "{{CLIENT_ID}}",
    delegate: NetfunnelHandler.shared,  // Use NetfunnelHandler, not self
    useNetworkRecoveryMode: true  // Enable automatic network recovery
)

What Changed:

  • Robust error handling: onError proceeds with business logic for maximum service availability
  • Smart network handling: onNetworkError relies on network recovery mode instead of manual handling
  • Improved user experience: Better handling of different response states
  • Production-ready: Robust error handling ensures service continues even when NetFUNNEL encounters issues
  • Comprehensive logging: Detailed console messages for all response types and debugging
Complete API Reference

For detailed information about all delegate response types, status codes, response object structure, and advanced callback patterns, see the API Reference.

3.7 Key Implementation Points​

  1. Project/Segment keys: Use exact keys from the NetFUNNEL console
  2. Required imports: Add Netfunnel_iOS import
  3. Delegate implementation: Implement ALL callback methods (NetfunnelDelegate requirement)
  4. Robust error handling:
    • onSuccess and onError execute business logic for service availability
    • onNetworkError logs only (use useNetworkRecoveryMode = true for automatic recovery)
  5. View lifecycle: Use onAppear for initialization and UI updates
  6. Comprehensive logging: Log all delegate responses for debugging

Step 4: Identify Key Return Integration Point (nfStop)​

Sample Application

The following examples use a sample application for demonstration purposes. Your actual application code will naturally differ from what is shown here. Adapt the integration patterns to match your specific code structure, business logic completion points, and key return requirements.

💡 Need a practice project? Check out our Sample Projects for an iOS Application (Single ViewController) template ready for NetFUNNEL SDK integration practice.

Understanding Our Sample Application:

Let's examine our sample application to understand where nfStop should be called to return the NetFUNNEL key.

4.1 Identify Business Logic Completion Points​

Current Flow After nfStart Success:

// From Step 3 - when nfStart succeeds
NetfunnelHandler.shared.onSuccess = { projectKey, segmentKey, statusCode, message in
    NSLog("onSuccess \(statusCode) \(message)")
    // Execute original business logic when NetFUNNEL allows entry
    navigationManager.navigateWithDelay(to: .basicControl)
}

What Happens Next:

  1. User navigates to BasicControlView - SwiftUI View lifecycle begins
  2. View loads completely - onAppear triggers
  3. User's session is active - they can now use the protected functionality
  4. Key should be returned - to allow the next user in queue to enter

Important Note about nfStop Implementation: nfStop can be called independently without requiring nfStart to be called first. If nfStart was never called, NetFUNNEL will automatically handle the key release if needed, or do nothing if no key exists. This makes nfStop safe to call in any scenario without conditional checks, simplifying the implementation.

4.2 Identify Integration Points for Key Return​

Integration Point Options:

Integration PointWhen to UsePros
SwiftUI View LifecycleSimple navigation flowsEasy to implement, works for most cases
Business Logic CompletionComplex operations (API calls, processing)Precise control, returns key after actual work
User Action CompletionUser-initiated operationsReturns key when user finishes their task

4.3 Choose the Right Integration Point​

For Our Sample Application:

Current Business Logic: navigationManager.navigateWithDelay(to: .basicControl)

  • What it does: Navigates to BasicControlView
  • When it completes: When the BasicControlView loads successfully
  • Best integration point: SwiftUI View lifecycle events (onAppear)

Integration Strategy:

  1. SwiftUI View Creation: Return key when BasicControlView is fully loaded
  2. Simple and Reliable: Works for navigation-based flows
  3. User Experience: Key is returned when user can actually use the service

4.4 Verify Integration Point Logic​

Complete Flow Analysis:

  1. User clicks button → nfStart() called
  2. Waiting room appears → User waits in queue
  3. Entry granted → onSuccess callback fires
  4. Business logic executes → navigationManager.navigateWithDelay(to: .basicControl) runs
  5. BasicControlView loads → User can now use the service
  6. Key return needed → Call nfStop() to free up queue slot

Why This Integration Point Makes Sense:

  • User Experience: Key is returned when user can actually use the service
  • Queue Management: Next user can enter as soon as current user is ready
  • Resource Efficiency: Prevents unnecessary queue blocking
  • Implementation Simplicity: Easy to implement and maintain

Key Insight: The nfStop integration point should be where the user's intended business operation is truly complete and they can benefit from the service they queued for.

Step 5: Implement Key Return Function (nfStop)​

Adapt to Your Application

The examples below show different approaches for returning keys. Choose the approach that best fits your application's architecture - whether you need to return keys after ViewController navigation, API calls, or other business logic completion.

5.1 Understand the nfStop Function​

The nfStop function has this basic structure:

Netfunnel.shared.nfStop(
    projectKey: "your_project_key",    // Must match nfStart keys exactly
    segmentKey: "your_segment_key"     // Must match nfStart keys exactly
)

Key Requirements:

  • Exact Key Matching: Keys must be identical to those used in nfStart()
  • Timing: Call after business logic completes, not immediately after nfStart()

5.2 Add Required Imports​

Before implementing nfStop, add the necessary imports to your View:

import SwiftUI
import Netfunnel_iOS

Key Imports:

  • Netfunnel_iOS - Main NetFUNNEL framework (already imported for nfStart)

5.3 Add Basic Key Return (SwiftUI View Lifecycle)​

Return key when BasicControlView loads:

// BasicControlView.swift
import SwiftUI
import Netfunnel_iOS

struct BasicControlView: View {
    @StateObject private var navigationManager = NavigationManager.shared

    var body: some View {
        VStack(spacing: 0) {
            // Success Section
            VStack(spacing: 24) {
                // Success icon and title omitted for brevity
                // ... success UI elements ...

                Text("Basic Control Complete")
                    .font(.system(size: 28, weight: .bold, design: .rounded))
                    .foregroundColor(primaryTextColor)
                    .multilineTextAlignment(.center)

                Text("This is the completion page for Basic Control (Code-based Integration).")
                    .font(.system(size: 16, weight: .regular, design: .rounded))
                    .multilineTextAlignment(.center)
                    .foregroundColor(secondaryTextColor)
                    .padding(.horizontal, 32)
            }
            .padding(.top, 60)
            .padding(.bottom, 40)

            Spacer()

            // Back to Main Button
            Button(action: {
                navigationManager.navigateBackWithDelay()
            }) {
                Text("Back to Main")
            }
            .buttonStyle(ModernButtonStyle())
        }
        // Additional UI modifiers omitted for brevity
        // ... background, frame, navigationBarHidden, etc. ...
        .onAppear {
            // Return NetFUNNEL key when SwiftUI view is fully loaded
            Netfunnel.shared.nfStop(
                projectKey: "your_project_key",
                segmentKey: "your_segment_key"
            )
        }
    }

    // Color calculation properties omitted for brevity
    // private var backgroundColor: Color { ... }
    // private var primaryTextColor: Color { ... }
    // private var secondaryTextColor: Color { ... }
}

What Changed:

  • SwiftUI View Lifecycle: Returns key when BasicControlView is fully loaded
  • Simple Approach: Works for basic navigation scenarios
  • Direct Call: Assumes NetFUNNEL is initialized and available

Now let's test your key return implementation to make sure everything is working correctly.

Run your app and follow this testing sequence:

  1. Click the "Basic Control (Code-based Integration)" button - You should see the waiting room appear
  2. In NetFUNNEL console, change Limited Inflow from 0 to 1 - This allows entry
  3. Observe the waiting room closing - It should disappear and navigate to BasicControlView
  4. Check Xcode console for key return logs - You should see completion logs

Enable NetFUNNEL Logging for Better Debugging:

Enable debug logging by setting printLog = true in your AppDelegate initialization, then check the Xcode console. For detailed setup instructions, see the Test NetFUNNEL Initialization) section.

What to Look For:

When you change Limited Inflow from 0 to 1 during the waiting room phase, you should see logs like this:

[NF4] [2025-09-18 15:26:39.184] Sending initialEntry request: https://nf4-onprem-demo-4525.stclab.com/ts.wseq?opcode=5101&sid=service_1&aid=test_liam_01
[NF4] [2025-09-18 15:26:39.265] Received initialEntry response: Response(timestamp: Optional(1758176799306), code: 201, key: Optional("38AED8AD2AB482D3042E4564072A4B01F2FF579E4EB078FCB0C8421263F389F8B9586BFF9617864B33217D368B3B2A1FBCFD08B8F833299D4D743DBF3C84B6D4E168B227EF3E2A74958D7ED95766B706459E4B85A186035300FD8474FD450E3D352C312C312C302C302C302C30"), nwait: Optional(1), nnext: Optional(0), tps: Optional(0.0), ttl: Optional(1), ip: Optional("nf4-onprem-demo-4525.stclab.com"), port: Optional(443), preBeginTs: nil, preEndTs: nil, postBeginTs: nil, postEndTs: nil, sticky: Optional("nf1"), vwrHtml: Optional("https://nf4-onprem-demo-4525.stclab.com/content/netfunnel-statics/assets/vwr-page/page/1/1/1/index.html"), liveMessage: nil, chkEnterCnt: Optional(0), waitOrderYn: Optional(0), msg: nil, vwrType: Optional("wait"))
[NF4] [2025-09-18 15:26:39.803] Fetching HTML content from following URL. https://nf4-onprem-demo-4525.stclab.com/content/netfunnel-statics/assets/vwr-page/page/1/1/1/index.html
[NF4] [2025-09-18 15:26:39.871] Sending reentry request: https://nf4-onprem-demo-4525.stclab.com:443/ts.wseq?opcode=5002&key=38AED8AD2AB482D3042E4564072A4B01F2FF579E4EB078FCB0C8421263F389F8B9586BFF9617864B33217D368B3B2A1FBCFD08B8F833299D4D743DBF3C84B6D4E168B227EF3E2A74958D7ED95766B706459E4B85A186035300FD8474FD450E3D352C312C312C302C302C302C30&sticky=nf1
[NF4] [2025-09-18 15:26:39.920] Received reentry response: Response(timestamp: Optional(1758176799970), code: 201, key: Optional("38AED8AD2AB482D3042E4564072A4B014AE7EF0CDA16397B678ED3382A6A8BAF1CEB37B55CCC33944E7335CBCAA4A95FBCFD08B8F833299D4D743DBF3C84B6D4E168B227EF3E2A74958D7ED95766B706459E4B85A186035300FD8474FD450E3D342C312C302C302C302C302C30"), nwait: Optional(0), nnext: Optional(0), tps: Optional(0.0), ttl: Optional(1), ip: Optional("nf4-onprem-demo-4525.stclab.com"), port: Optional(443), preBeginTs: nil, preEndTs: nil, postBeginTs: nil, postEndTs: nil, sticky: Optional("nf1"), vwrHtml: Optional("https://nf4-onprem-demo-4525.stclab.com/content/netfunnel-statics/assets/vwr-page/page/1/1/1/index.html"), liveMessage: nil, chkEnterCnt: Optional(0), waitOrderYn: Optional(0), msg: nil, vwrType: Optional("wait"))
[NF4] [2025-09-18 15:26:48.450] Received reentry response: Response(timestamp: Optional(1758176808499), code: 200, key: Optional("38AED8AD2AB482D3042E4564072A4B01A6758441574083251F3F4BC91E4E9873D39834BE911F6D95F3EB16E3BE77DBB36AA7C2ADE2FDDEF7523C7393E95B8401DA85D3F8F85FA7FA7B7F120E3C54DAC2071A87CC017BE50129F11B1499A36DF643308DE76E9345037F51A6CCA3A36C6E2C302C302C30"), nwait: Optional(0), nnext: Optional(0), tps: Optional(0.0), ttl: Optional(0), ip: Optional("nf4-onprem-demo-4525.stclab.com"), port: Optional(443), preBeginTs: nil, preEndTs: nil, postBeginTs: nil, postEndTs: nil, sticky: Optional("nf1"), vwrHtml: Optional(""), liveMessage: nil, chkEnterCnt: Optional(1), waitOrderYn: Optional(0), msg: nil, vwrType: Optional(""))
[NF4] [2025-09-18 15:26:50.174] Sending returnKey request: https://nf4-onprem-demo-4525.stclab.com:443/ts.wseq?opcode=5004&key=38AED8AD2AB482D3042E4564072A4B01A6758441574083251F3F4BC91E4E9873D39834BE911F6D95F3EB16E3BE77DBB36AA7C2ADE2FDDEF7523C7393E95B8401DA85D3F8F85FA7FA7B7F120E3C54DAC2071A87CC017BE50129F11B1499A36DF643308DE76E9345037F51A6CCA3A36C6E2C302C302C30&sticky=nf1
[NF4] [2025-09-18 15:26:50.223] Received returnKey response. code=200, key=Optional("38AED8AD2AB482D3042E4564072A4B01A6758441574083251F3F4BC91E4E9873D39834BE911F6D95F3EB16E3BE77DBB36AA7C2ADE2FDDEF7523C7393E95B8401DA85D3F8F85FA7FA7B7F120E3C54DAC2071A87CC017BE50129F11B1499A36DF643308DE76E9345037F51A6CCA3A36C6E2C302C302C30")

Key indicators that everything is working:

Log MessageWhat It MeansStatus
[NF4] Sending initialEntry requestInitial request sent to NetFUNNEL server✅ Good
[NF4] Received initialEntry response with code: 201Server responded with WAIT status✅ Good
[NF4] Fetching HTML contentWaiting room HTML is being loaded✅ Good
[NF4] Sending reentry request (repeated)Periodic re-entry requests (polling)✅ Good
[NF4] Received reentry response with code: 200Entry granted - waiting room should close✅ Good
[NF4] Sending returnKey requestKey return request sent to server✅ Good
[NF4] Received returnKey response with code=200Key return successful✅ Good

Testing Sequence:

  1. Start with Limited Inflow = 0: Waiting room appears, reentry requests repeat
  2. Change Limited Inflow to 1: reentry response changes to code: 200, waiting room closes
  3. SwiftUI View loads: BasicControlView onAppear calls nfStop()
  4. Key return: returnKey request/response confirms key return

If you encounter issues:

  • No returnKey logs: Check if nfStop() is being called in BasicControlView
  • Key return fails: Verify project/segment keys match exactly between nfStart() and nfStop()
  • SwiftUI View doesn't load: Check if onSuccess callback is executing navigation properly
  • Waiting room doesn't close: Verify Limited Inflow is set to 1 in console

If you see the complete flow from waiting room → entry → SwiftUI view load → key return, your implementation is working correctly! You can now proceed to enhance the error handling and add more robust callback management.

5.4 Key Implementation Points​

Best Practice: Return Keys Promptly

Return NetFUNNEL keys when your business logic completes. While NetFUNNEL automatically returns keys after timeout, manual returns provide better user experience and queue efficiency.

Key Return Rules:

  • ✅ Always: Return key after business logic completes (success or failure)
  • ⚠️ Auto-timeout: NetFUNNEL returns keys automatically if not returned manually
  • Timing: Call after business logic completes, not immediately after nfStart()

Implementation Checklist:

  1. Exact Key Matching: Keys in nfStop() must match nfStart() exactly
  2. SwiftUI View Lifecycle: Use onAppear for key return timing
  3. Consistent Keys: Use the same project/segment keys throughout the flow
Complete API Reference

For detailed information about nfStop parameters, response handling, and advanced key return patterns, see the API Reference.

Step 6: Test Waiting Room (Limited Inflow = 0)​

Testing with Your Application

The testing steps below are based on the sample application. Adapt the testing process to your actual application - replace button names, view controller navigation, and verification steps with your specific implementation.

6.1 Trigger the Action​

  1. Clear Xcode console logs (if you want to observe from a clean state)

    • In Xcode, click the trash icon in the console to clear previous logs
    • Or use Cmd+K to clear console

  2. Click the protected button (e.g., "Basic Control (Code-based Integration)" button)

Expected result: Waiting room WebView appears on current screen

iOS main screen before clicking iOS waiting room WebView

6.2 Verify Waiting Room Display​

Check these elements are shown correctly:

With Limited Inflow set to 0 and only one user connected, verify:

  • My waiting number: 1
  • Estimated Wait Time: 00:00:00 (hh:mm:ss)
  • Queue behind: 0
iOS waiting room WebView

6.3 Check Xcode Console Activity​

Verify NetFUNNEL logs:

Enable debug logging by setting printLog = true in your AppDelegate initialization, then check the Xcode console. You should see logs like:

[NF4] [2025-09-18 15:26:39.184] Sending initialEntry request: https://nf4-onprem-demo-4525.stclab.com/ts.wseq?opcode=5101&sid=service_1&aid=test_liam_01
[NF4] [2025-09-18 15:26:39.265] Received initialEntry response: Response(timestamp: Optional(1758176799306), code: 201, key: Optional("38AED8AD2AB482D3042E4564072A4B01F2FF579E4EB078FCB0C8421263F389F8B9586BFF9617864B33217D368B3B2A1FBCFD08B8F833299D4D743DBF3C84B6D4E168B227EF3E2A74958D7ED95766B706459E4B85A186035300FD8474FD450E3D352C312C312C302C302C302C30"), nwait: Optional(1), nnext: Optional(0), tps: Optional(0.0), ttl: Optional(1), ip: Optional("nf4-onprem-demo-4525.stclab.com"), port: Optional(443), preBeginTs: nil, preEndTs: nil, postBeginTs: nil, postEndTs: nil, sticky: Optional("nf1"), vwrHtml: Optional("https://nf4-onprem-demo-4525.stclab.com/content/netfunnel-statics/assets/vwr-page/page/1/1/1/index.html"), liveMessage: nil, chkEnterCnt: Optional(0), waitOrderYn: Optional(0), msg: nil, vwrType: Optional("wait"))
[NF4] [2025-09-18 15:26:39.803] Fetching HTML content from following URL. https://nf4-onprem-demo-4525.stclab.com/content/netfunnel-statics/assets/vwr-page/page/1/1/1/index.html
[NF4] [2025-09-18 15:26:39.871] Sending reentry request: https://nf4-onprem-demo-4525.stclab.com:443/ts.wseq?opcode=5002&key=38AED8AD2AB482D3042E4564072A4B01F2FF579E4EB078FCB0C8421263F389F8B9586BFF9617864B33217D368B3B2A1FBCFD08B8F833299D4D743DBF3C84B6D4E168B227EF3E2A74958D7ED95766B706459E4B85A186035300FD8474FD450E3D352C312C312C302C302C302C30&sticky=nf1
[NF4] [2025-09-18 15:26:39.920] Received reentry response: Response(timestamp: Optional(1758176799970), code: 201, key: Optional("38AED8AD2AB482D3042E4564072A4B014AE7EF0CDA16397B678ED3382A6A8BAF1CEB37B55CCC33944E7335CBCAA4A95FBCFD08B8F833299D4D743DBF3C84B6D4E168B227EF3E2A74958D7ED95766B706459E4B85A186035300FD8474FD450E3D342C312C302C302C302C302C30"), nwait: Optional(0), nnext: Optional(0), tps: Optional(0.0), ttl: Optional(1), ip: Optional("nf4-onprem-demo-4525.stclab.com"), port: Optional(443), preBeginTs: nil, preEndTs: nil, postBeginTs: nil, postEndTs: nil, sticky: Optional("nf1"), vwrHtml: Optional("https://nf4-onprem-demo-4525.stclab.com/content/netfunnel-statics/assets/vwr-page/page/1/1/1/index.html"), liveMessage: nil, chkEnterCnt: Optional(0), waitOrderYn: Optional(0), msg: nil, vwrType: Optional("wait"))

Key indicators that everything is working:

Log MessageWhat It MeansStatus
[NF4] Sending initialEntry requestInitial request sent to NetFUNNEL server✅ Good
[NF4] Received initialEntry response with code: 201Server responded with WAIT status✅ Good
[NF4] Fetching HTML contentWaiting room HTML is being loaded✅ Good
[NF4] Sending reentry requestPeriodic re-entry requests (polling)✅ Good
[NF4] Received reentry response with code: 201Server continues to respond with WAIT status✅ Good

Verify response:

  • Look for ts.wseq?opcode=5002 requests in the logs
  • Check response shows code: 201 (WAIT)
  • 201 = WAIT, 200 = PASS (entry allowed)
  • Here, since Limited Inflow is 0, the correct response is 201

Step 7: Test Entry (Limited Inflow = 1)​

7.1 Update Segment Settings​

  1. Return to NetFUNNEL console
  2. Click segment's Edit button to open the edit screen

NetFUNNEL console edit segment button

  1. Change Limited Inflow from 0 to 1
  2. Click Confirm at the bottom

Update limited inflow Confirm changes

Immediate Effect

As soon as you click Confirm, the waiting room will disappear and you will immediately navigate to BasicControlViewController. If you want to observe this moment, keep another screen open where the waiting room is currently displayed.

7.2 Verify Entry​

Expected result: Waiting room disappears immediately, navigation to BasicControlViewController occurs

iOS service entry successful

Check Xcode console for entry confirmation:

You should see logs like:

[NF4] [2025-09-18 15:26:48.450] Received reentry response: Response(timestamp: Optional(1758176808499), code: 200, key: Optional("38AED8AD2AB482D3042E4564072A4B01A6758441574083251F3F4BC91E4E9873D39834BE911F6D95F3EB16E3BE77DBB36AA7C2ADE2FDDEF7523C7393E95B8401DA85D3F8F85FA7FA7B7F120E3C54DAC2071A87CC017BE50129F11B1499A36DF643308DE76E9345037F51A6CCA3A36C6E2C302C302C30"), nwait: Optional(0), nnext: Optional(0), tps: Optional(0.0), ttl: Optional(0), ip: Optional("nf4-onprem-demo-4525.stclab.com"), port: Optional(443), preBeginTs: nil, preEndTs: nil, postBeginTs: nil, postEndTs: nil, sticky: Optional("nf1"), vwrHtml: Optional(""), liveMessage: nil, chkEnterCnt: Optional(1), waitOrderYn: Optional(0), msg: nil, vwrType: Optional(""))

Key indicators of successful entry:

Log MessageWhat It MeansStatus
[NF4] Received reentry response with code: 200Entry granted - waiting room should close✅ Good

7.3 Check Key Return​

Verify successful key return:

Look for these logs in Xcode console:

[NF4] [2025-09-18 15:26:50.174] Sending returnKey request: https://nf4-onprem-demo-4525.stclab.com:443/ts.wseq?opcode=5004&key=38AED8AD2AB482D3042E4564072A4B01A6758441574083251F3F4BC91E4E9873D39834BE911F6D95F3EB16E3BE77DBB36AA7C2ADE2FDDEF7523C7393E95B8401DA85D3F8F85FA7FA7B7F120E3C54DAC2071A87CC017BE50129F11B1499A36DF643308DE76E9345037F51A6CCA3A36C6E2C302C302C30&sticky=nf1
[NF4] [2025-09-18 15:26:50.223] Received returnKey response. code=200, key=Optional("38AED8AD2AB482D3042E4564072A4B01A6758441574083251F3F4BC91E4E9873D39834BE911F6D95F3EB16E3BE77DBB36AA7C2ADE2FDDEF7523C7393E95B8401DA85D3F8F85FA7FA7B7F120E3C54DAC2071A87CC017BE50129F11B1499A36DF643308DE76E9345037F51A6CCA3A36C6E2C302C302C30")

Key indicators of successful key return:

Log MessageWhat It MeansStatus
[NF4] Sending returnKey requestKey return request sent to server✅ Good
[NF4] Received returnKey response with code=200Key return successful✅ Good

Summary​

Essential Points (Must Do)​

Setup:

  • Complete Installation & Initialization and verify NetFUNNEL agent loads correctly
  • Create segment in console with Basic Control
  • Get Project Key and Segment Key from console
  • Set Limited Inflow to 0 for testing, 1+ for production

Integration:

  • Add required imports: Netfunnel_iOS
  • Implement ALL callback methods (NetfunnelDelegate requirement)
  • Wrap business logic with Netfunnel.shared.nfStart() in action methods
  • Handle onSuccess callback to execute business logic
  • Call Netfunnel.shared.nfStop() after business logic completes
  • Use identical keys in both nfStart() and nfStop()

Error Handling:

  • Handle onError by proceeding with business logic (maintains service availability)
  • Handle onNetworkError by logging only (use useNetworkRecoveryMode = true)
  • Handle onBlock by showing appropriate user message
  • Handle onClose by staying on current view controller (user canceled)
  • Implement comprehensive logging for all delegate responses

Testing:

  • Test waiting room appears with Limited Inflow = 0
  • Test entry works with Limited Inflow = 1
  • Verify key return occurs after completion
  • Check Xcode console for NetFUNNEL logs

Optional Items (Nice to Have)​

Error Handling Enhancements:

  • Add user-friendly error messages instead of basic logging
  • Implement custom error handling strategies for different response types
  • Add analytics tracking for NetFUNNEL events

Code Organization:

  • Create centralized configuration constants
  • Build reusable NetFUNNEL wrapper functions
  • Implement modular integration patterns across multiple view controllers

Best Practices​

Required Imports​

import Netfunnel_iOS

Why these imports matter:

  • Essential for NetFUNNEL integration
  • Must be added to any View using NetFUNNEL
  • Required for both nfStart() and nfStop() functions

Complete Callback Implementation​

private func setupCallbacks() {
    NetfunnelHandler.shared.onSuccess = { projectKey, segmentKey, statusCode, message in
        NSLog("onSuccess \(statusCode) \(message)")
        // Execute original business logic when NetFUNNEL allows entry
        navigationManager.navigateWithDelay(to: .basicControl)
    }

    NetfunnelHandler.shared.onError = { projectKey, segmentKey, statusCode, message in
        NSLog("onError \(statusCode) \(message)")
        // System error occurred - proceed with original logic for robust service availability
        navigationManager.navigateWithDelay(to: .basicControl)
    }

    NetfunnelHandler.shared.onNetworkError = { projectKey, segmentKey, statusCode, message in
        NSLog("onNetworkError \(statusCode) \(message)")
        // Network error occurred - log for debugging, but don't execute business logic
    }

    NetfunnelHandler.shared.onBlock = { projectKey, segmentKey, statusCode, message in
        NSLog("onBlock \(statusCode) \(message)")
        // User is blocked - show appropriate message
    }

    NetfunnelHandler.shared.onClose = { projectKey, segmentKey, statusCode, message in
        NSLog("onClose \(statusCode) \(message)")
        // User closed waiting room - handle appropriately
    }

    NetfunnelHandler.shared.onContinue = { projectKey, segmentKey, statusCode, message, aheadWait, behindWait, waitTime, progressRate in
        NSLog("onContinue \(statusCode) \(message)")
        // Update waiting progress information
    }
}

Key principle: Always implement ALL callback methods - NetfunnelDelegate requirement.

Centralized Configuration​

// Store your keys in one place
struct NetFunnelConfig {
    static let projectKey = "your_project_key"
    static let segmentKey = "your_segment_key"
}

// Use the same config everywhere
Netfunnel.shared.nfStart(
    projectKey: NetFunnelConfig.projectKey,
    segmentKey: NetFunnelConfig.segmentKey
)

Netfunnel.shared.nfStop(
    projectKey: NetFunnelConfig.projectKey,
    segmentKey: NetFunnelConfig.segmentKey
)

Benefits:

  • Easy to update keys across your entire app
  • Reduces copy-paste errors
  • Single source of truth for configuration

Robust Error Handling Strategy​

// Why onError executes business logic but onNetworkError doesn't:

NetfunnelHandler.shared.onError = { projectKey, segmentKey, statusCode, message in
    NSLog("onError \(statusCode) \(message)")
    // Scenario: NetFUNNEL server encounters internal errors
    // Strategy: Execute business logic to maintain service availability
    // Rationale: Server errors are typically temporary and shouldn't block user access
    // Result: Robust service that continues even when NetFUNNEL has issues
    navigationManager.navigateWithDelay(to: .basicControl)
}

NetfunnelHandler.shared.onNetworkError = { projectKey, segmentKey, statusCode, message in
    NSLog("onNetworkError \(statusCode) \(message)")
    // Scenario: Network connectivity problems (offline, timeout)
    // Strategy: Log only, don't execute business logic
    // Rationale: Use useNetworkRecoveryMode = true for automatic network recovery
    // Result: Users stay in waiting room during network issues and auto-resume when connectivity returns
}

Key principle: Always proceed with business logic on system errors to maintain service availability.

Network Recovery Mode Configuration​

// AppDelegate.swift
Netfunnel.initialize(
    clientId: "{{CLIENT_ID}}",
    delegate: NetfunnelHandler.shared,  // Use NetfunnelHandler, not self
    useNetworkRecoveryMode: true  // Enable automatic network recovery
)

Benefits:

  • Automatic handling of network connectivity issues
  • Users automatically resume when network returns
  • Reduces manual network error handling complexity

Always Return Keys​

// Return key after successful operation
struct BasicControlView: View {
    var body: some View {
        VStack {
            // Your UI content
        }
        .onAppear {
            // Return key when SwiftUI view is fully loaded
            Netfunnel.shared.nfStop(
                projectKey: NetFunnelConfig.projectKey,
                segmentKey: NetFunnelConfig.segmentKey
            )
        }
    }
}

When to return keys:

  • After SwiftUI View loads completely
  • After API calls complete
  • After business operations finish
  • Even when operations fail

Key Matching​

// Start and stop must use identical keys
let projectKey = "your_project_key"
let segmentKey = "your_segment_key"

Netfunnel.shared.nfStart(
    projectKey: projectKey,
    segmentKey: segmentKey
)

Netfunnel.shared.nfStop(
    projectKey: projectKey,  // Must match exactly
    segmentKey: segmentKey  // Must match exactly
)

Comprehensive Logging​

// Enable debug logging in AppDelegate
Netfunnel.initialize(
    clientId: "{{CLIENT_ID}}",
    delegate: NetfunnelHandler.shared,  // Use NetfunnelHandler, not self
    printLog: true  // Enable detailed logging
)

// Check Xcode console for logs

Logging benefits:

  • Easy debugging of NetFUNNEL integration issues
  • Track request/response flow
  • Monitor key return operations
  • Identify network connectivity problems

Common Issues & Troubleshooting​

Waiting Room Never Appears​

Symptoms: Button click works normally, no waiting room shows up

Debug Steps:

  1. Check Xcode console for iOS errors: ⌘+Shift+Y → Filter by "Error"
  2. Verify NetFUNNEL initialization in AppDelegate
  3. Confirm segment is activated (not deactivated) in console
  4. Check Limited Inflow is set to 0 for testing
  5. Verify Project Key and Segment Key match console exactly (case-sensitive)

Delegate Never Fires​

Symptoms: nfStart() called but no response received

Debug Steps:

  1. Check Xcode console for NetFUNNEL logs: Filter by "NetFUNNEL"
  2. Verify network connectivity to NetFUNNEL servers
  3. Check if segment is activated (not deactivated)
  4. Try with Limited Inflow = 0 to force waiting room
  5. Ensure ALL callback methods are implemented (NetfunnelDelegate requirement)

Users Stuck in Queue​

Symptoms: First user enters, but second user never gets through

Debug Steps:

  1. Check if nfStop() is being called after business logic completes
  2. Verify keys in nfStop() match nfStart() exactly
  3. Look for iOS errors preventing nfStop() execution
  4. Check Xcode console for [NF4] Sending returnKey request logs
  5. Verify [NF4] Sending returnKey request appears in logs

Waiting Room Shows But Never Allows Entry​

Symptoms: Waiting room appears but user never gets through, even with Limited Inflow = 1

Debug Steps:

  1. Check segment status in console - ensure it's not in "Block" mode
  2. Verify Limited Inflow is set to 1 or higher
  3. Check Xcode console for [NF4] Sending reentry request (re-entry requests)
  4. Look for error responses in the NetFUNNEL logs
  5. Verify network connectivity to NetFUNNEL servers

App Crashes on NetFUNNEL Calls​

Symptoms: App crashes when calling nfStart() or nfStop()

Debug Steps:

  1. Check if required imports are added: Netfunnel_iOS
  2. Verify NetFUNNEL is initialized in AppDelegate
  3. Ensure ALL callback methods are implemented (NetfunnelDelegate requirement)
  4. Check if delegate is set correctly in initialization (NetfunnelHandler.shared)
  5. Verify NetFUNNEL agent is properly installed

Key Return Fails​

Symptoms: nfStop() called but key not returned

Debug Steps:

  1. Verify keys in nfStop() match nfStart() exactly (case-sensitive)
  2. Check Xcode console for [NF4] Sending returnKey request message
  3. Look for [NF4] Sending returnKey request in logs
  4. Verify [NF4] Received returnKey response with code=200
  5. Ensure nfStop() is called in appropriate lifecycle method

Network Recovery Issues​

Symptoms: Users get stuck during network connectivity problems

Debug Steps:

  1. Verify useNetworkRecoveryMode = true in AppDelegate initialization
  2. Check network connectivity to NetFUNNEL servers
  3. Test with airplane mode on/off to simulate network issues
  4. Monitor Xcode console for onNetworkError delegate calls
  5. Ensure onNetworkError doesn't execute business logic (relies on recovery mode)

QA Checklist​

Pre-Implementation Verification​

  • Project Key / Segment Key match console exactly (reconfirm in console)
  • NetFUNNEL agent properly initialized in AppDelegate
  • Required imports added: Netfunnel_iOS
  • ALL callback methods implemented (NetfunnelDelegate requirement)

Waiting Room Testing (Limited Inflow = 0)​

  • With Limited Inflow = 0, waiting room WebView displays correctly
  • Waiting room shows correct details:
    • My waiting number: 1
    • Estimated Wait Time: 00:00:00 (hh:mm:ss)
    • Queue behind: 0
  • While waiting, [NF4] Sending reentry request appears periodically in Xcode console
  • [NF4] Received reentry response shows code=201 (WAIT)

Entry Testing (Limited Inflow = 1)​

  • When changing to Limited Inflow = 1, onSuccess delegate fires
  • onSuccess delegate executes original business logic
  • Waiting room disappears immediately upon entry
  • Navigation to target SwiftUI View occurs successfully

Key Return Verification​

  • At completion point, key return works correctly
  • [NF4] Sending returnKey request appears in Xcode console
  • [NF4] Sending returnKey request occurs with HTTP 200
  • [NF4] Received returnKey response shows code=200
  • Key return happens exactly once per nfStart call
  • Key return occurs after business logic completion

Error Handling​

  • Delegate branching implemented for all required states:
    • onSuccess - executes original logic
    • onError - handles system errors appropriately (proceeds with business logic)
    • onNetworkError - handles network issues appropriately (logs only)
    • onBlock - handles blocked state appropriately
    • onClose - handles user cancellation appropriately
    • onContinue - handles waiting progress appropriately
  • Network recovery mode enabled in AppDelegate initialization
  • Key matching - projectKey/segmentKey identical in nfStart and nfStop
  • Comprehensive logging implemented for all delegate responses

Xcode Console Verification​

  • NetFUNNEL logs visible in Xcode console (Filter by "NetFUNNEL")
  • Initialization successful message appears
  • Sending initialEntry request message appears on button click
  • Fetching HTML content message appears
  • Sending returnKey request message appears
  • Received returnKey response with code=200 appears
